» DVM Test Report: Efficiency and Loop Characterization|Vin Nominal|35% Load
| Test Details | |

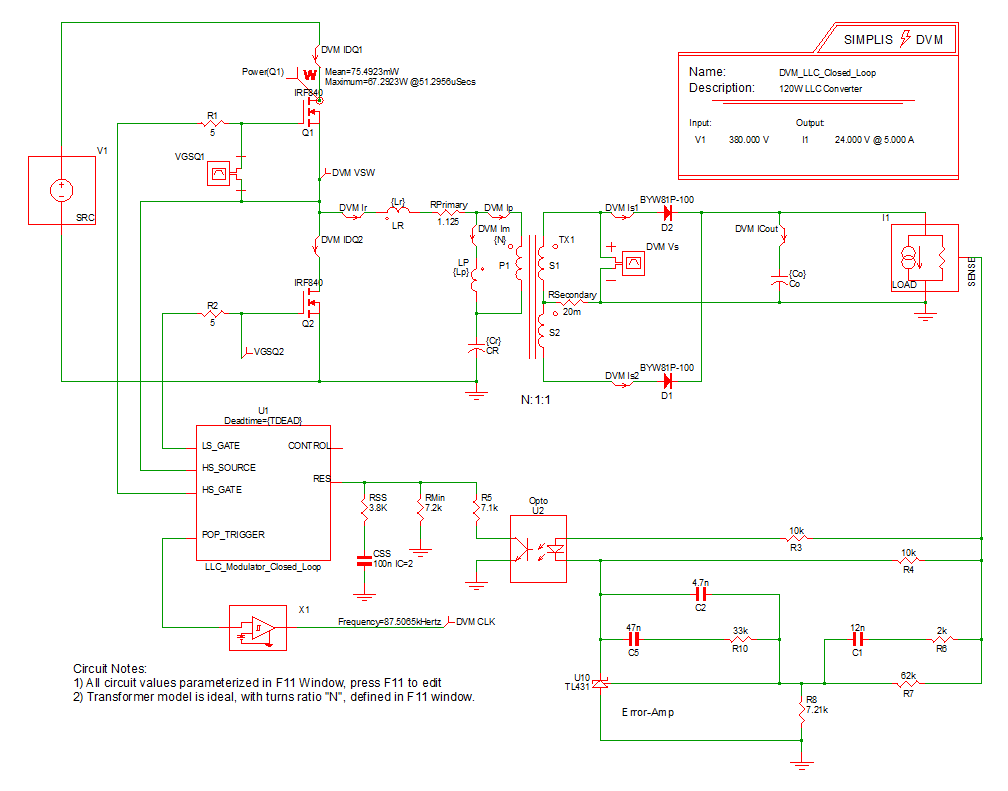

| Schematic | 8.2_LLC Closed Loop.sxsch |
| Test | Efficiency and Loop Characterization|Vin Nominal|35% Load |
| Date / Time | 12/10/2015 6:08 PM |
| Report Directory | measure_loop_param\Efficiencyand Loop Characterization\Vin Nominal\35% Load |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 95.9151% |
| eta_nom | 95.9151% |
| Frequency(CLK) | 87.3265k |
| gain_crossover_freq | 4.78929k |
| gain_margin | 26.3038 |
| gmargin_nom | 26.3038 |
| gxover_nom | 4.78929k |
| ILOAD | AVG 1.75754 MIN 1.75626 MAX 1.75847 RMS 1.75754 PK2PK 2.21408m |
| iload_nom | 1.75754 |
| ISRC | AVG 116.224m MIN -538.365m MAX 644.276m RMS 321.679m PK2PK 1.18264 |
| min_phase | 48.0547 |
| min_phase_freq | 4.78929k |
| phase_crossover_freq | 30.8916k |
| phase_margin | 47.8355 |
| pmargin_nom | 47.8355 |
| Power(LOAD) | 42.3512 |
| Power(SRC) | 44.1549 |
| sw_freq_nom | 87.3265k |
| VLOAD | AVG 24.0969 MIN 24.0795 MAX 24.1096 RMS 24.0969 PK2PK 30.073m |
| VSRC | AVG 379.988 MIN 379.936 MAX 380.054 RMS 379.988 PK2PK 118.264m |
| Measured Spec Values | |
| Max_VLOAD | PASS: Max. Output1 Voltage (24.1096) is less than or equal to Max. Output1 Voltage Spec (25.2) |
| Min_VLOAD | PASS: Min. Output1 Voltage (24.0795) is greater than or equal to Min. Output1 Voltage Spec (22.8) |
| min_gain_margin | PASS: Gain Margin (26.3038) is greater than Min. Gain Margin (12) |
| min_phase_margin | PASS: Phase Margin (47.8355) is greater than Min. Phase Margin (35) |

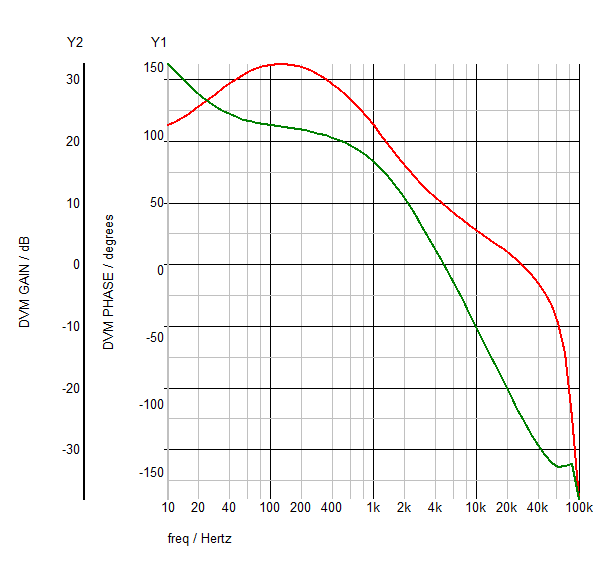

 Bode Plot
GAIN
PHASE
|
|
| SXGPH File | simplis_ac7_414.sxgph |

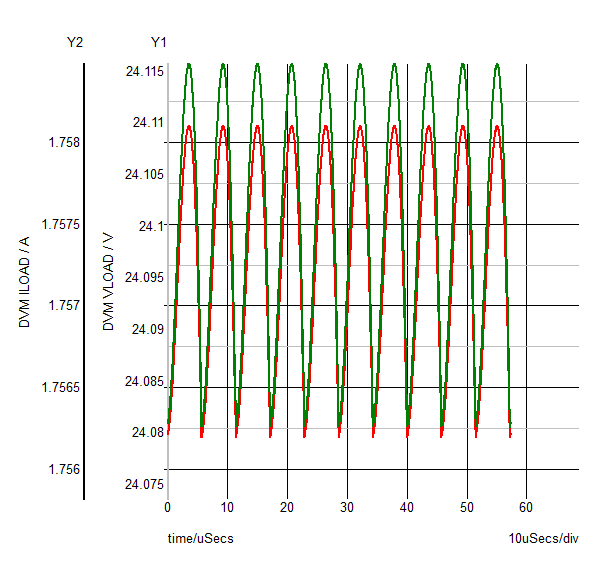

 LOAD
VLOAD
ILOAD
|
|
| SXGPH File | simplis_pop7_380.sxgph |

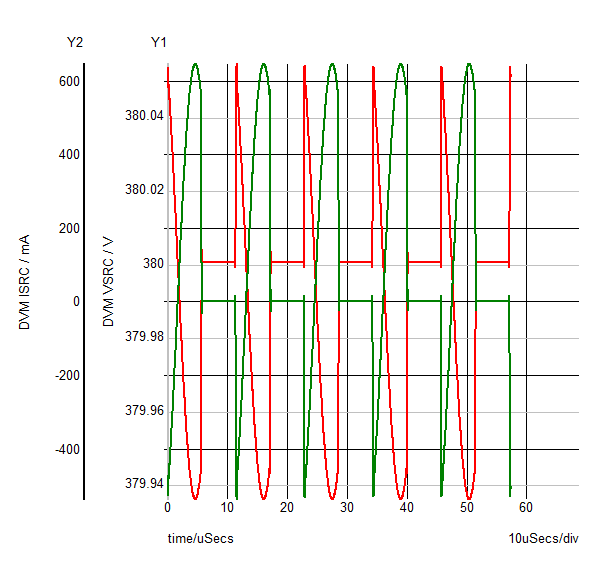

 SRC
VSRC
ISRC
|
|
| SXGPH File | simplis_pop7_370.sxgph |

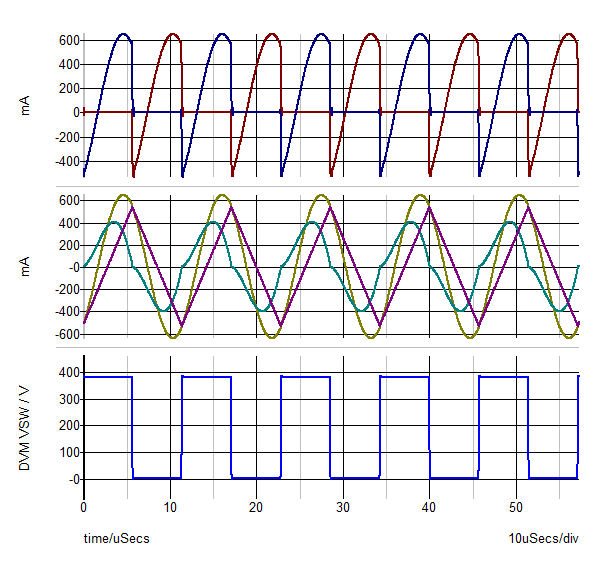

 Primary
IDQ1
IDQ2
Im
Ip
Ir
VSW
|
|
| SXGPH File | simplis_pop7_361.sxgph |

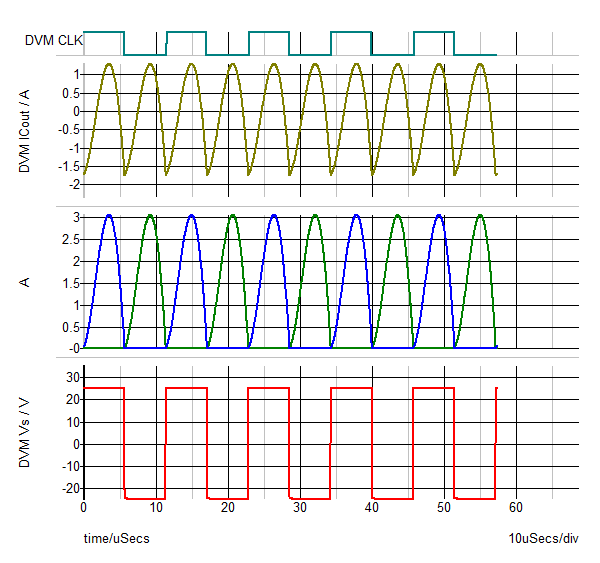

 Secondary
CLK
ICout
Is1
Is2
Vs
|
|
| SXGPH File | simplis_pop7_375.sxgph |
| Other SXGPH Files | |
| Modulator#pop | simplis_pop7_408.sxgph |
| default#403#pop | simplis_pop7_403.sxgph |
