» DVM Test Report: Transient|Startup|50% Load|0V to Vin Maximum
| Test Details | |
| Schematic | LTC3406B - DVM ADVANCED.sxsch |
| Test | Transient|Startup|50% Load|0V to Vin Maximum |
| Date / Time | 12/10/2015 5:42 PM |
| Report Directory | dc_dc_built_in\Transient\Startup\50%Load\0V to Vin Maximum |
| Log File | report.txt |

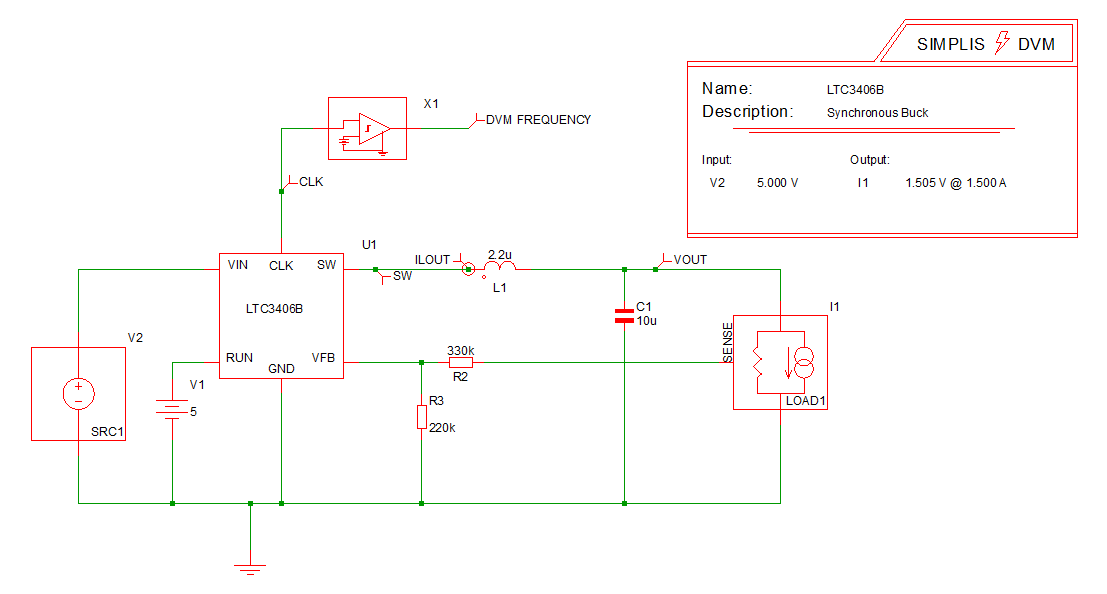

| Screenshot | schematic.png |
| Status | FAIL |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| ILOAD1 | MIN -498.677n MAX 846.562m |
| ILOAD1_in_reg | AVG 750.278m MIN 748.119m MAX 752.027m RMS 750.279m PK2PK 3.90851m |
| ISRC1 | MIN -1.98756 MAX 1.80947 |
| Overshoot_VLOAD1 | 1.69876 |
| sw_freq | 955.651k |
| VLOAD1 | MIN 5.51955n MAX 1.69876 |
| VLOAD1_in_reg | AVG 1.50555 MIN 1.50122 MAX 1.50906 RMS 1.50556 PK2PK 7.84305m |
| vout1_turn_on_time | 38.7973u |
| VSRC1 | MIN 1.98756m MAX 5.5 |
| Measured Spec Values | |
| Max_VLOAD1_in_reg | PASS: Max. Output1 Voltage in Reg. (1.50906) is less than or equal to Max. Output1 Voltage Spec (1.58025) |
| Min_VLOAD1_in_reg | PASS: Min. Output1 Voltage in Reg. (1.50122) is greater than or equal to Min. Output1 Voltage Spec (1.42975) |
| Overshoot_VLOAD1 | FAIL: Max. Output1 Voltage (1.69876) is not less than or equal to Max. Output1 Voltage Spec (1.58025) |
| Pk2Pk_VLOAD1_in_reg | PASS: Pk-to-Pk Output1 Voltage in Reg. (7.84305m) is less than or equal to Max. Output1 Voltage Spec (20m) |

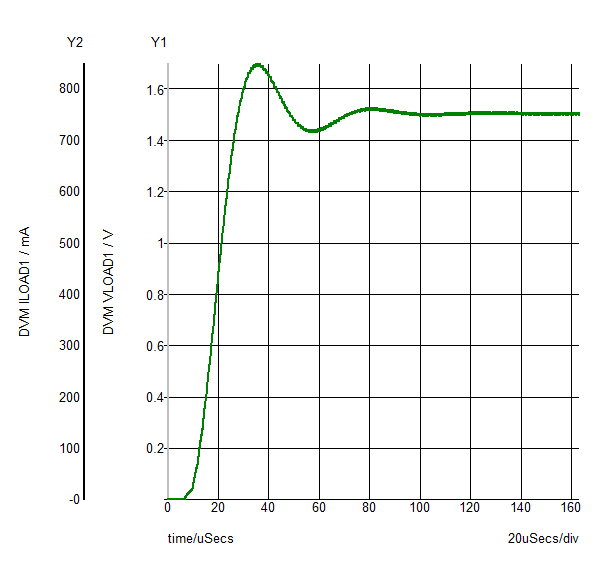

 LOAD1
VLOAD1
ILOAD1
|
|
| SXGPH File | simplis_tran3_611.sxgph |

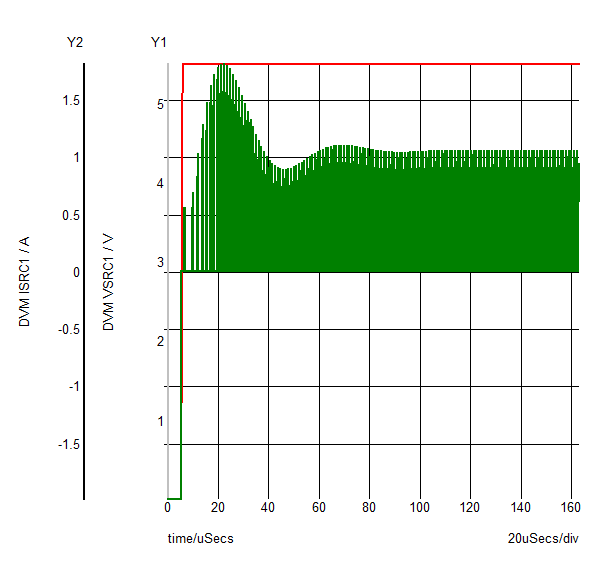

 SRC1
VSRC1
ISRC1
|
|
| SXGPH File | simplis_tran3_606.sxgph |

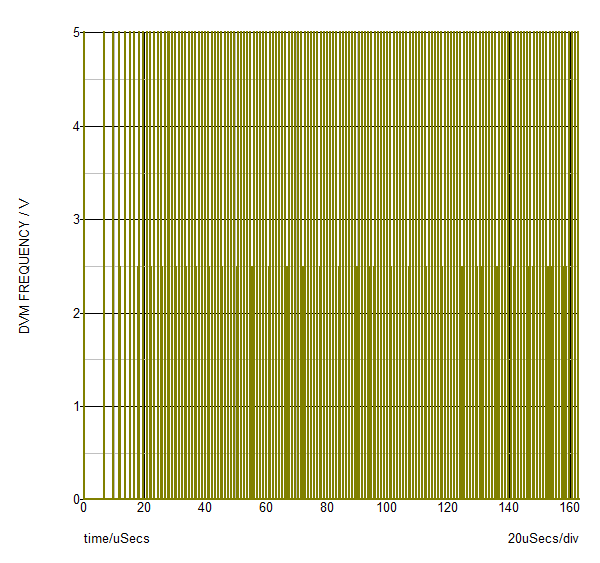

 default
FREQUENCY
|
|
| SXGPH File | simplis_tran3_589.sxgph |
| Other SXGPH Files | |
| clock#tran | simplis_tran3_594.sxgph |
