» DVM Test Report: Ac Analysis|Bode Plot|Vin Minimum|100% Load
| Test Details | |
| Schematic | LTC3406B - DVM ADVANCED.sxsch |
| Test | Ac Analysis|Bode Plot|Vin Minimum|100% Load |
| Date / Time | 12/10/2015 5:40 PM |
| Report Directory | dc_dc_built_in\AcAnalysis\Bode Plot\Vin Minimum\100% Load |
| Log File | report.txt |

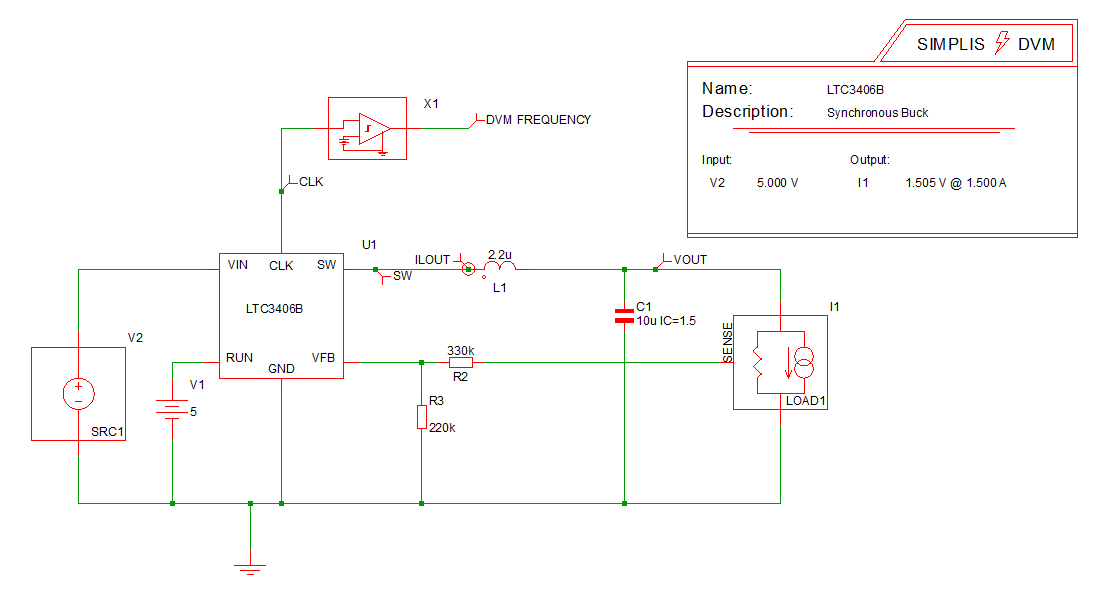

| Screenshot | schematic.png |
| Status | WARN |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 66.4168% |
| gain_crossover_freq | Unable to determine gain_crossover_freq |
| gain_margin | Unable to determine gain_margin |
| ILOAD1 | AVG 1.44503 MIN 1.4413 MAX 1.44867 RMS 1.44503 PK2PK 7.3662m |
| ISRC1 | AVG 701.209m MIN 381.375u MAX 1.72039 RMS 1.01462 PK2PK 1.72001 |
| min_phase | Unable to determine min_phase |
| min_phase_freq | Unable to determine min_phase_freq |
| phase_crossover_freq | Unable to determine phase_crossover_freq |
| phase_margin | Unable to determine phase_margin |
| Power(LOAD1) | 2.09506 |
| Power(SRC1) | 3.15441 |
| sw_freq | 929.646k |
| VLOAD1 | AVG 1.44984 MIN 1.4461 MAX 1.45349 RMS 1.44984 PK2PK 7.39072m |
| VSRC1 | AVG 4.4993 MIN 4.49828 MAX 4.5 RMS 4.4993 PK2PK 1.72001m |
| Measured Spec Values | |
| Max_VLOAD1 | PASS: Max. Output1 Voltage (1.45349) is less than or equal to Max. Output1 Voltage Spec (1.58025) |
| Min_VLOAD1 | PASS: Min. Output1 Voltage (1.4461) is greater than or equal to Min. Output1 Voltage Spec (1.42975) |
| min_gain_margin | WARN: Unable to determine min_gain_margin |
| min_phase_margin | WARN: Unable to determine min_phase_margin |
 Bode Plot
GAIN
PHASE
|
|
| SXGPH File | simplis_ac6_252.sxgph |
 LOAD1
VLOAD1
ILOAD1
|
|
| SXGPH File | simplis_pop6_238.sxgph |

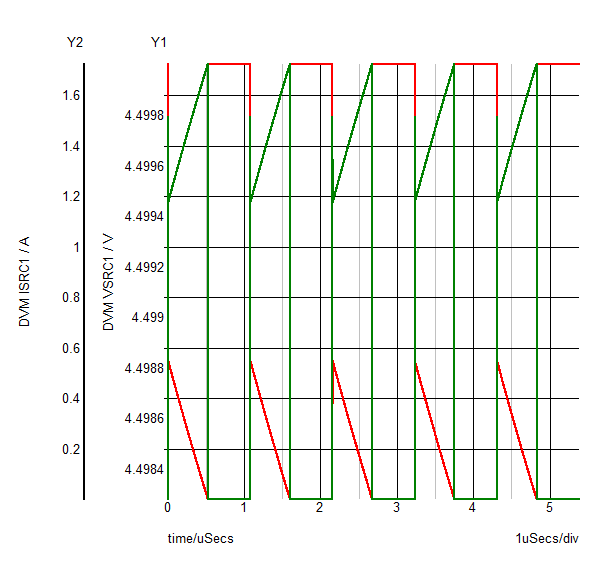

 SRC1
VSRC1
ISRC1
|
|
| SXGPH File | simplis_pop6_233.sxgph |
 default
FREQUENCY
|
|
| SXGPH File | simplis_pop6_216.sxgph |
| Other SXGPH Files | |
| clock#pop | simplis_pop6_221.sxgph |
