» DVM Test Report: Ac Analysis|Bode Plot|Vin Maximum|100% Load
| Test Details | |

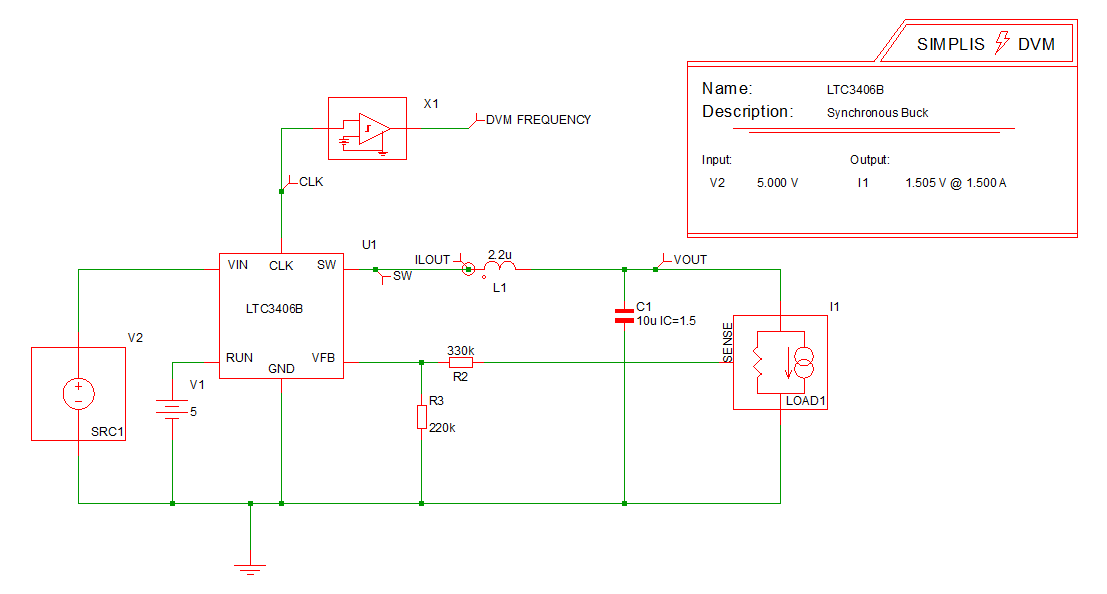

| Schematic | LTC3406B - DVM ADVANCED.sxsch |
| Test | Ac Analysis|Bode Plot|Vin Maximum|100% Load |
| Date / Time | 12/10/2015 5:41 PM |
| Report Directory | dc_dc_built_in\AcAnalysis\Bode Plot\Vin Maximum\100% Load |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 66.3459% |
| gain_crossover_freq | 21.6616k |
| gain_margin | 26.8904 |
| ILOAD1 | AVG 1.50063 MIN 1.49625 MAX 1.50451 RMS 1.50063 PK2PK 8.25515m |
| ISRC1 | AVG 619.346m MIN 466.026u MAX 1.81961 RMS 973.383m PK2PK 1.81914 |
| min_phase | 56.1713 |
| min_phase_freq | 21.6616k |
| phase_crossover_freq | 417.534k |
| phase_margin | 56.0928 |
| Power(LOAD1) | 2.25938 |
| Power(SRC1) | 3.40545 |
| sw_freq | 955.632k |
| VLOAD1 | AVG 1.50562 MIN 1.50123 MAX 1.50951 RMS 1.50562 PK2PK 8.28261m |
| VSRC1 | AVG 5.49938 MIN 5.49818 MAX 5.5 RMS 5.49938 PK2PK 1.81914m |
| Measured Spec Values | |
| Max_VLOAD1 | PASS: Max. Output1 Voltage (1.50951) is less than or equal to Max. Output1 Voltage Spec (1.58025) |
| Min_VLOAD1 | PASS: Min. Output1 Voltage (1.50123) is greater than or equal to Min. Output1 Voltage Spec (1.42975) |
| min_gain_margin | PASS: Gain Margin (26.8904) is greater than Min. Gain Margin (12) |
| min_phase_margin | PASS: Phase Margin (56.0928) is greater than Min. Phase Margin (35) |
 Bode Plot
GAIN
PHASE
|
|
| SXGPH File | simplis_ac9_381.sxgph |

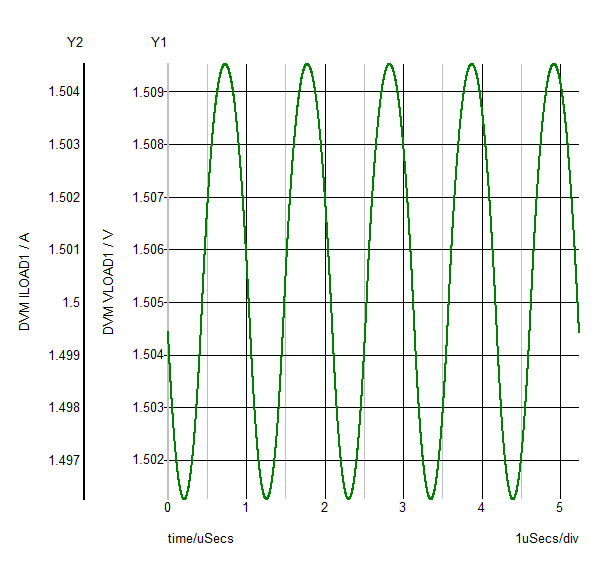

 LOAD1
VLOAD1
ILOAD1
|
|
| SXGPH File | simplis_pop9_367.sxgph |

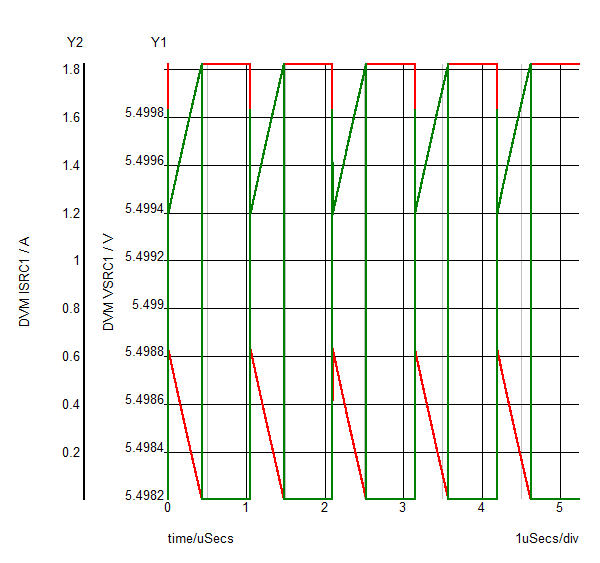

 SRC1
VSRC1
ISRC1
|
|
| SXGPH File | simplis_pop9_362.sxgph |
 default
FREQUENCY
|
|
| SXGPH File | simplis_pop9_345.sxgph |
| Other SXGPH Files | |
| clock#pop | simplis_pop9_350.sxgph |
